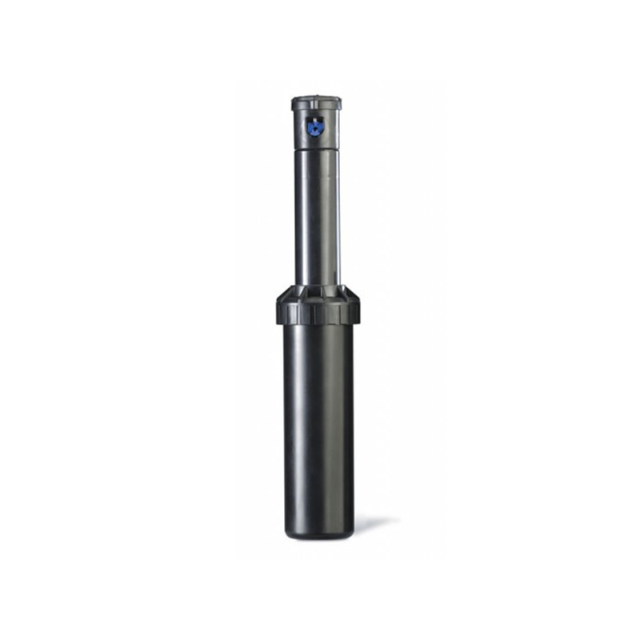

RAIN BIRD™ 3504 Series Rotor Pop Up Sprinklers

The RAIN BIRD™ 4" (100mm) 3504 popup gear driven rotor spray series, complete with a set of nozzles

1/2" BSPF bottom threaded inlet

Spray arc is easily adjustable from 40-360 degrees

The coverage radius at 2Bar water pressure is between 4.8m and 9.7m depending on nozzle selection

This is further adjustable down by up to 35% using the top adjustment screw

The SAM (Seal-A-Matic) option contains a check valve which prevents drain back in applications where there is significant height difference in a run of popups

For suitable connectors and pipe see either Spiral Barbed, or 13mm Barbed sections
