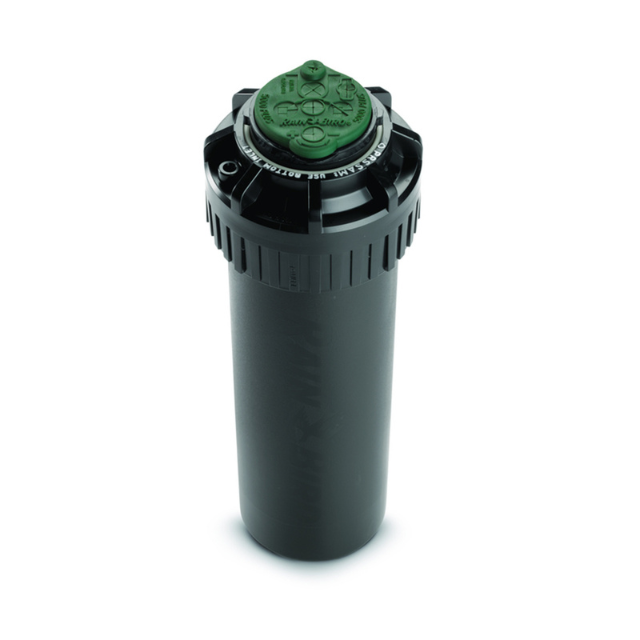

RAIN BIRD™ 5004 Plus Rotary Pop Up Sprinkler 40°-360° Part/Reverse

Gear driven adjustable arc pop up sprinkler

100mm pop up height. Watering arc is screw adjustable from 40° - 360° Watering radius (dependent on water pressure) is 5.7m - 15.2m

Adjustment by a combination of top screw and nozzle selection

Supplied complete with nozzle set. ¾" BSPF bottom threaded inlet

For suitable connectors and pipe see either Spiral Barbed or 13mm Barbed sections

It is recommended that the flow and pressure be measured for your tap water supply as this does vary

We also suggest that the complete system be tested on the surface before burying/final installation

Download manual
